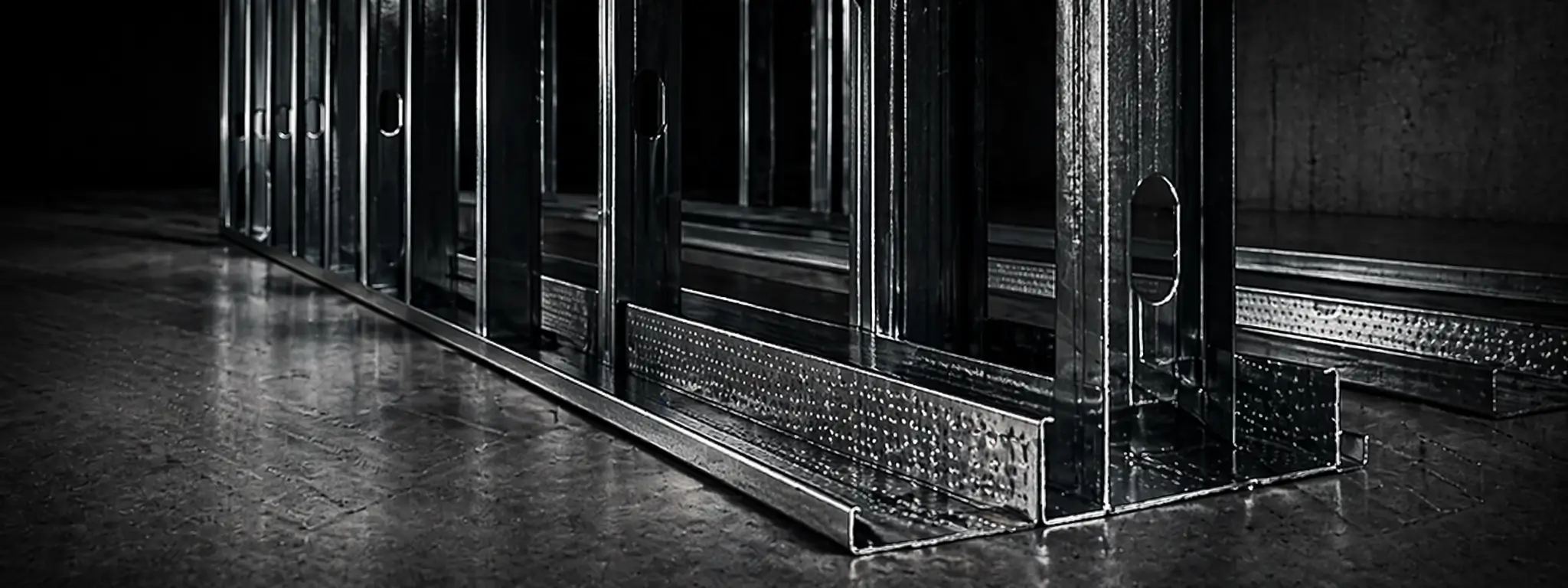

Steel Stud & Track Systems
The Studco steel stud framing system is engineered to provide designers and installers the solution to create framing systems that are not only durable and versatile but can also achieve the needs and design criteria in accordance with the BCA and appropriate Australian standards.

The Studco steel stud framing system is manufactured in a range of various widths, lengths and material gauges from 0.50mmBMT to 1.5mm BMT.

This range of stud and track profiles not only offer greater span and performance, but also are accompanied by a range of accessories including noggings, nogging track and bracket joining systems.

Bottom Track

Deflection Track

HEDA Jamb 63

Nogging Track

Nogging

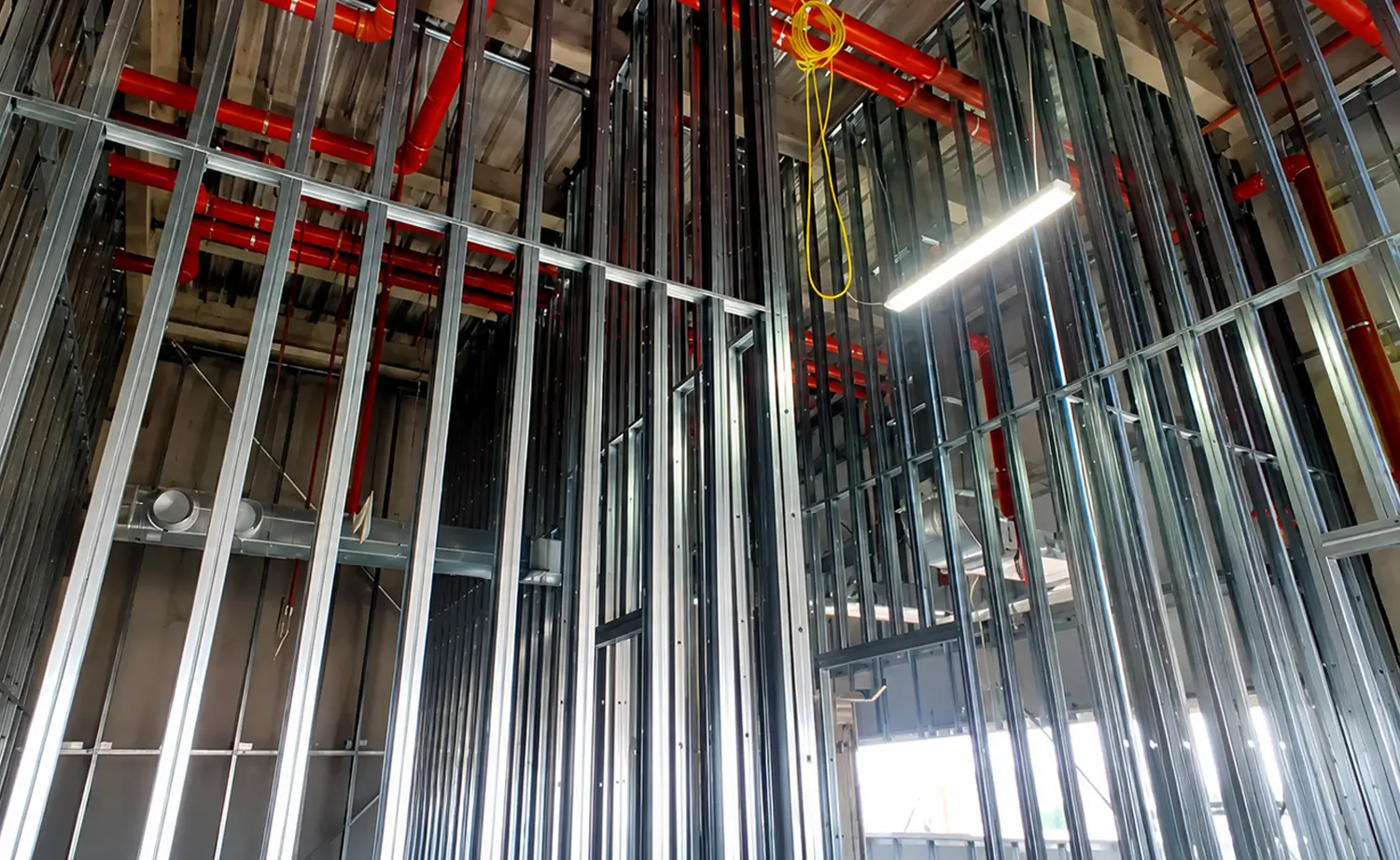

Stud & Track Frame

Stud Ceiling

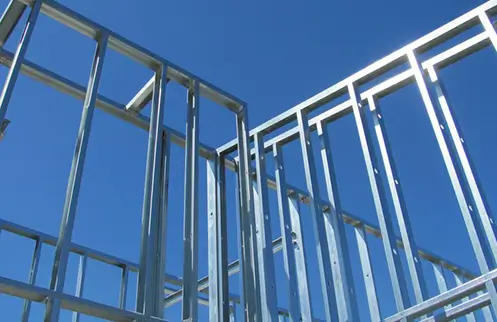

Studco Stud Wall

Vortex
‍A breakthrough in internal wall systems, the Studco Vortex High Performance Framing System® improves the behaviour of the wall structure in high-rise buildings.

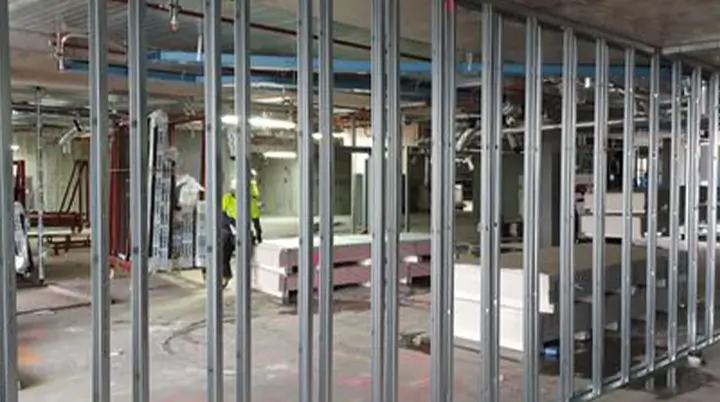

Studco Vortex Framing

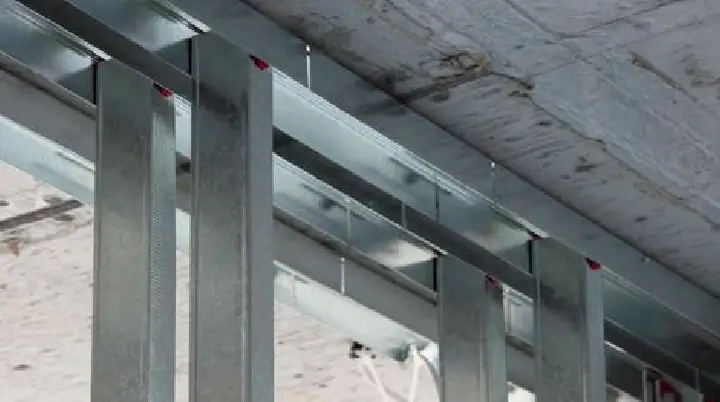

Vortex Framing - Close Up

Through extensive research in conjunction with Deakin University, Studco® has developed the Studco Vortex Internal Wall System, designed to reduce the stress and tension within the wall system that can cause noise annoyance. By comparison to a conventional system, the Studco Vortex Internal Wall System displayed 95% less deformation when installed.

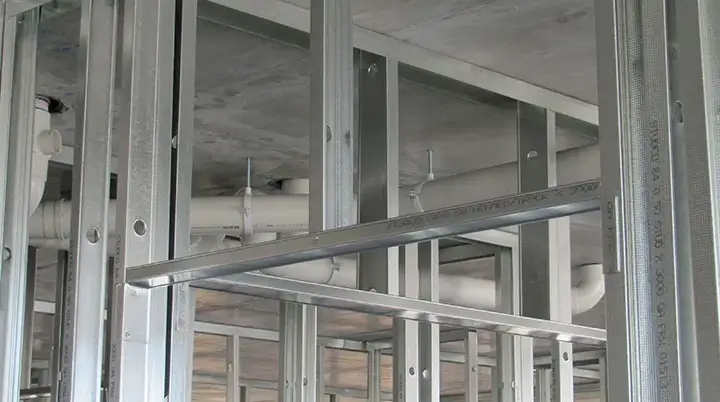

HEDA Tough Wall System
‍The HEDA® System from Studco offers a fast and easy way to create openings in both internal and external walls. Using fewer sections and fewer connections makes the process more straightforward and reduces construction time.

The HEDA Jamb, which is 92mm wide and 75mm deep, suits the standard 92mm steel stud system from Studco. Made from galvanised steel, the HEDA Jamb is available in 1.2mm and 1.6mm thicknesses, making this section extremely versatile over a vast range of opening sizes.

The HEDA Jamb section can be used for both the opening jambs (vertical members) and the lintels and sills (horizontal members). It eliminates the need for using multiple studs and stud/track combinations.

Datasheet |  Studco - HEDA Jamb

HEDA Jamb 63

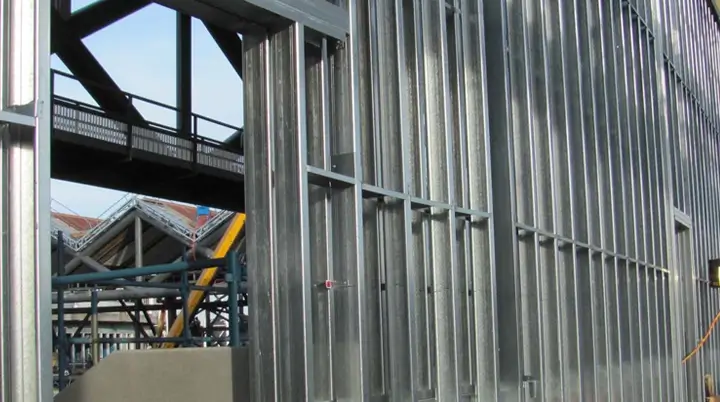

Structural (1.15 BMT)
‍Studco Steel Stud Framing Systems are engineered to provide durability and versatility that meets your design criteria, and complies with the Building Code ofAustralia (BCA), the New Zealand Building Code (NZBC) and other relevant standards.
‍
⤷   Studco steel stud and wall framing systems have enhanced strength, making them tougher, safer and more reliable for load-bearing capacities.
⤷   The Studco lipped wall studs are available in various widths and gauges from 0.50BMT to 1.15BMT.
⤷   Bell mouth service holes are punched at 500mm centres eliminating the need for cabling grommets.
⤷   The knurled face along the stud flange provides a positive screw point location.
⤷   Studs can be boxed or spliced to extend the overall length or to provide strengthening if required.

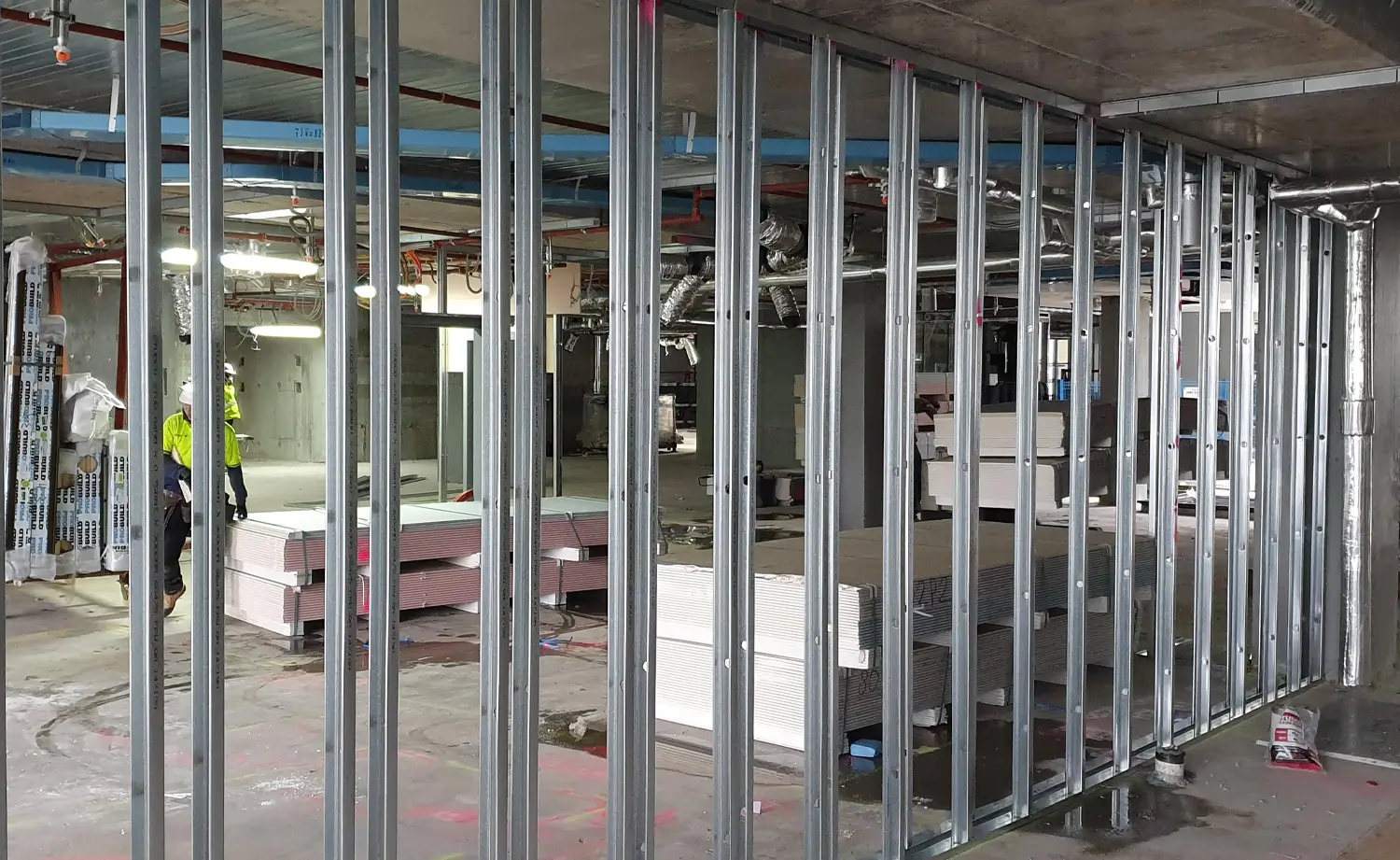

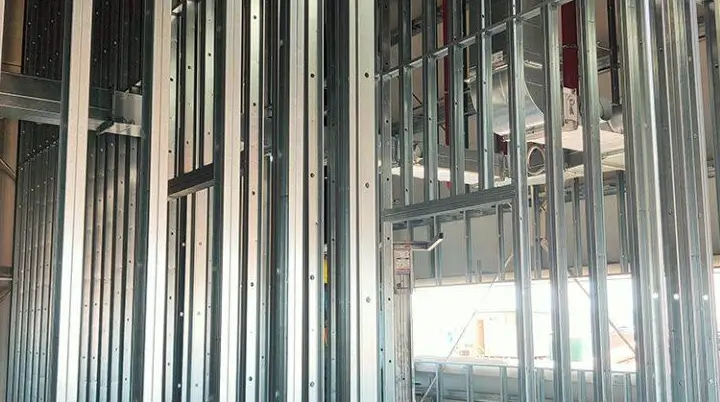

Steel Stud & Track (0.55 - 0.75 BMT)
‍‍Studco Steel Stud Framing Systems are engineered to provide durability and versatility that meets your design criteria and complies with the Building Code of Australia (BCA), the New Zealand Building Code (NZBC) and other relevant standards.
‍
⤷   Studco steel stud and wall framing systems have enhanced strength, making them tougher, safer and more reliable for load-bearing capacities.
⤷     The Studco lipped wall studs are available in various widths and gauges from 0.50BMT to 1.15BMT.
⤷     Bell mouth service holes are punched at 500mm centres eliminating the need for cabling grommets.
⤷     The knurled face along the stud flange provides a positive screw point location.
⤷     Studs can be boxed or spliced to extend the overall length or to provide strengthening if required.
